2208 1100KV Outrunner Brushless Motor For RC Airplane Multicopter Drone Quadcopter
Tips：
This motor matches 7-9 inch propeller,need the propeller hole is 4mm diameter.Very cost-effective，Suitable for novices to practice flying machines.
Description:
- No. Of Cells:2-4S Li-Poly
- Motor base screw hole :M3
- Weight:39.6g
- Plug:2.0mm banana plug
Package including:
motor*1+Motor shaft adapter*2
RCINPower SmooX 1404 Plus 2750KV 3850KV Brushless Motor 3~6S Lipo 1.5mm Shaft 9N12P Suitable 2~4S Battery 2.5~4 inch Propeller
Item Name:RCINPower SmooX 1404 Plus Brushless Motor
Product Parameters:
Brand Name: RCINPower
Model: 1404 plus
KV: 2750KV / 3850KV
Color:Blue
2750KV :
Configu-ration: 9N12P
Stator diameter: 12mm
Stator length: 4mm
Shaft diameter: 1.5mm(2mm inside)
Motor Dimension: φ19.2mm x 13.1mm
Weight: 9g/pc(3cm wire)
Idle current (10) @10V(A): 0.35
No. of cells (Lipo): 4~6S
Max continuous power (W) 3s:155
Internal resistance: 400mΩ
Max current(3s): 6.9A
Max. effciency current: 1.5-2A ＞82%
3850KV :
Configu-ration: 9N12P
Stator diameter: 12mm
Stator length: 4mm
Shaft diameter: 1.5mm(2mm inside)
Motor Dimension: φ19.2mm x 13.1mm
Weight: 9g/pc(3cm wire)
Idle current (10) @10V(A): 0.57
No. of cells (Lipo): 3~4S
Max continuous power (W) 3s:150
Internal resistance: 250mΩ
Max current(3s): 9.6A
Max. effciency current: 2-4A ＞82%
- Package Included:
- RCINPower SmooX 1404 Plus 2750KV Brushless Motor x 1
or
RCINPower SmooX 1404 Plus 2750KV Brushless Motor x 4
or
RCINPower SmooX 1404 Plus 3850KV Brushless Motor x 1
or
RCINPower SmooX 1404 Plus 3850KV Brushless Motor x 4
10PCS DC3V Micro Vibration Motor Mini Flat Pager Electronic Mobile Phone Button Battery Adhesive 1027 Vibration Motor
Specification:
Product Name : DC Vibration Motor
Type:1020/1027/1030/1034
Rated Voltage : DC 3-5V Voltage Usage Range: 2.5-4V DC Rated Current : 70mA Max Start Current: 901mA MaxStart Voltage: 2.3V DC
Wire Length: 40mm
Insulation Resistance: 10MΩ MinSpeed : 12000±2500RPM/Min
Package Contents:
- 10 Pcs x DC Vibration Motor
F2835 4000KV Brushless Motor 3-4S Lipo RC Battery For All ALIGN TREX T-Rex 450 RC Airplane Helicopter Quadcopter Toys
4000KV Brushless Motor For All ALIGN TREX T-rex 450 RC helicopter
The Brushless Motor is special one for the electirc helicopter 450 class, it has the best performance for 3D fly.
It will your best choice the 450 calss Helicopter.
No. Of cells: 3-4x Li-Poly
RPM/V: 4000
Max. efficiency current: 8 - 10.5 A (>75%)
No load current / 10 V: 0,5 A
Current capacity: 40 A/60 s
Dimensions:31 x 29 mm
Shaft diameter: 3.17mm
Weight: 64 g
Recomended model weight: 450 class Ele. Heli.
Recomended prop without gearbox: 6"-8"
IFlight XING XING2 2205 2300KV RC Brushless Motor Unibell 4-6S Lipo Battery for FPV Racing Drone Quadcopter Frame Kit Spare Part
PRODUCT DESCRIPTION
Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these years, but now it's time to set a new standard again! We're finally ready to announce our predecessor the XING2!
The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features you've just seen on your original XING series are still inbuilt in a new shape and design!

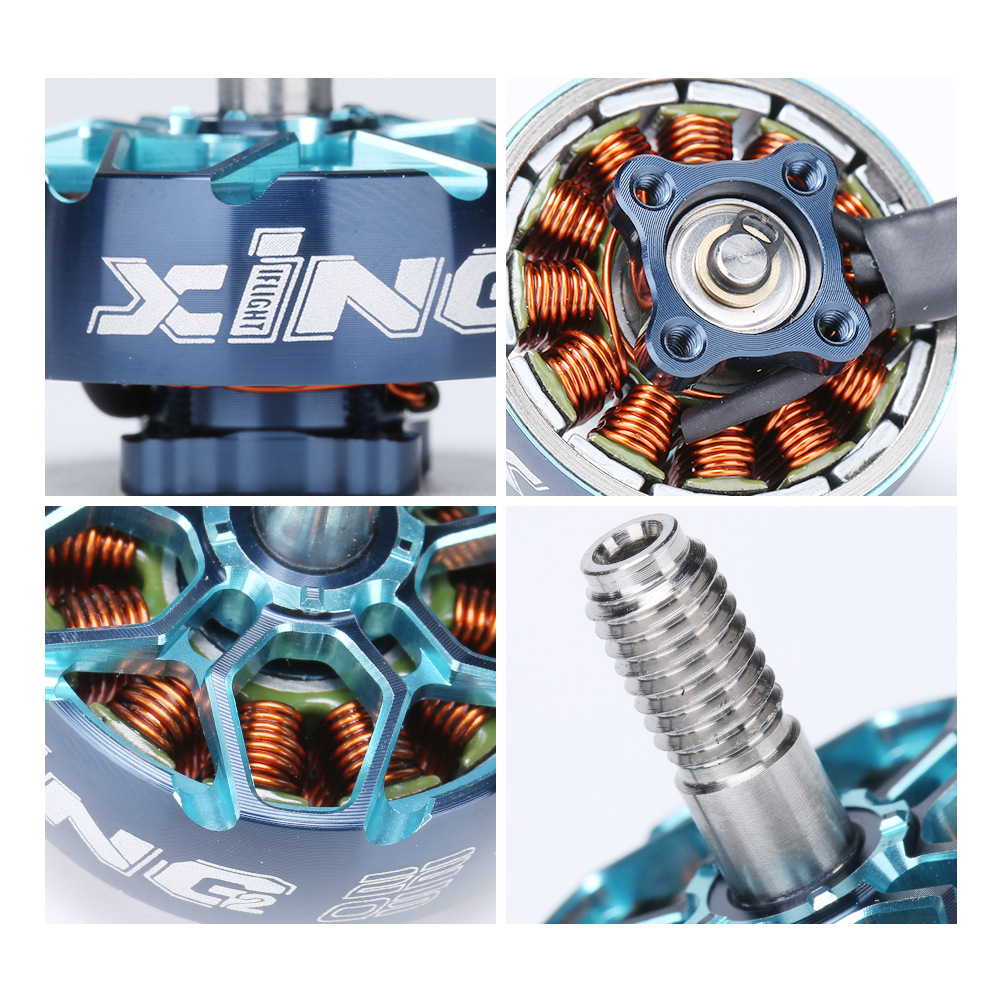

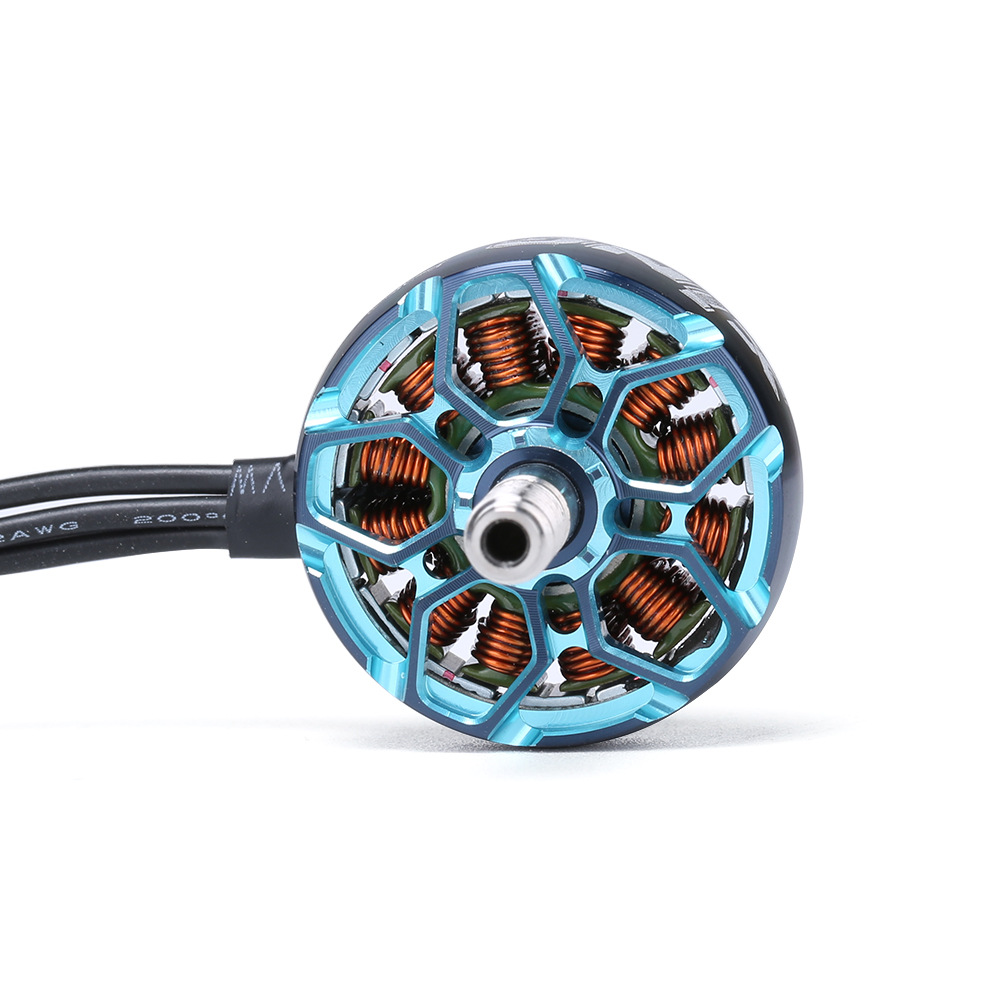

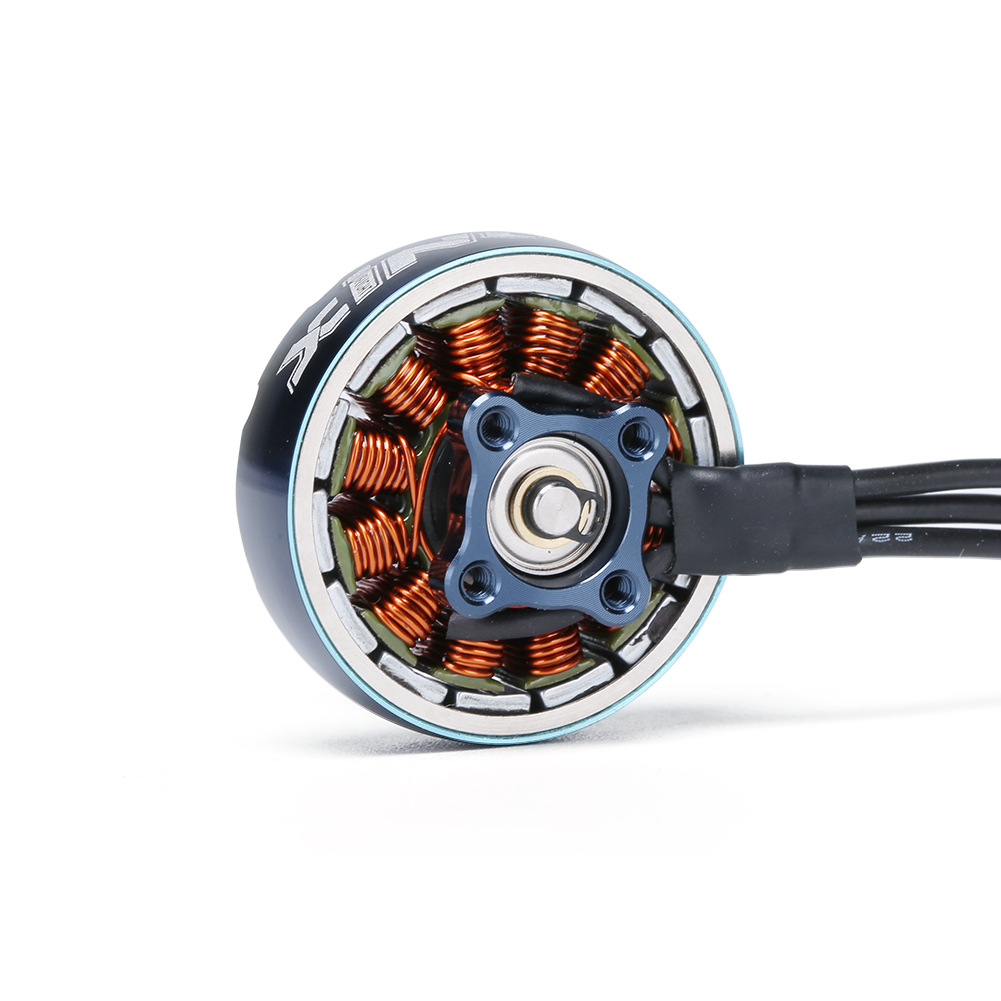

Features:
- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 8x3x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced
Specification

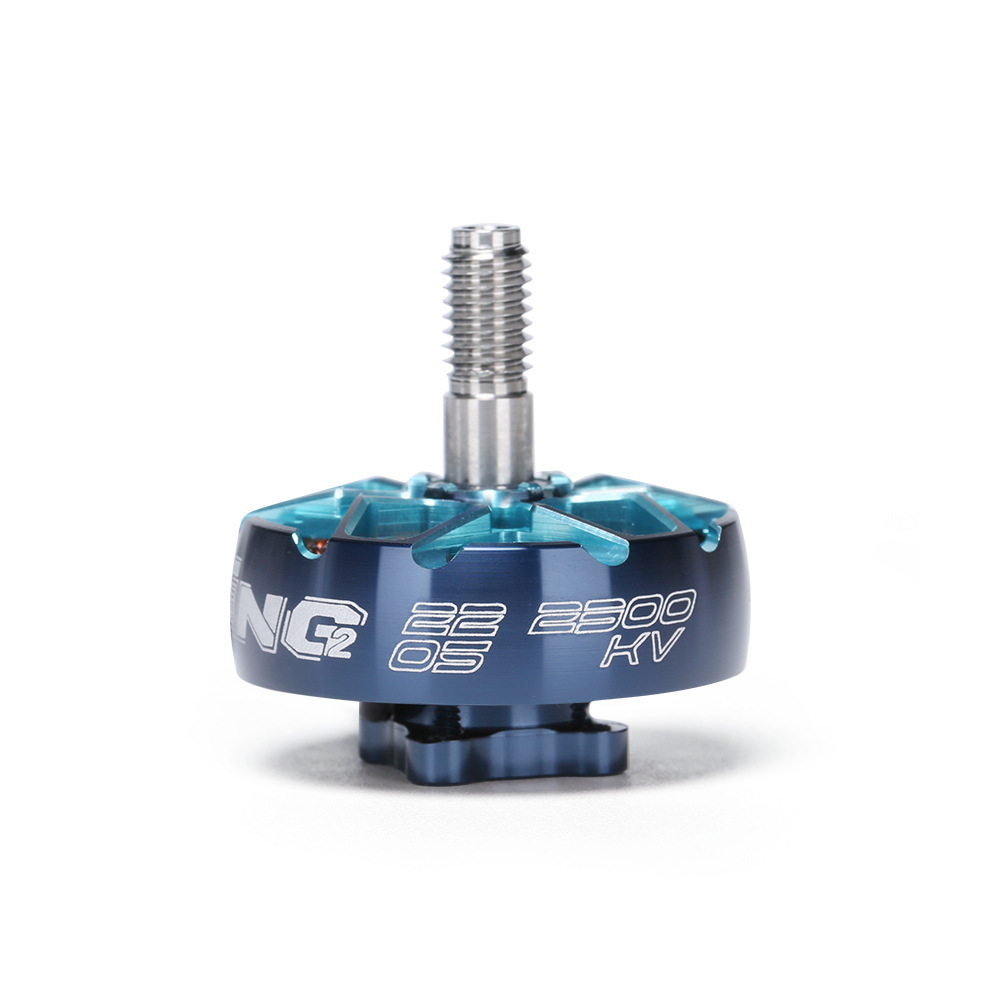

- Model: XING2 2205
- KV: 2300KV
- Version: CW Screw Thread
- Input Voltage: 4S/6S Lipo
- Configuration: 12N14P
- Stator Diameter: 22mm
- Stator Length: 5mm
- Weight: 12.5g with short wire
- Wire length: 20AWG 160mm
- Mounting pattern: 12*12mm

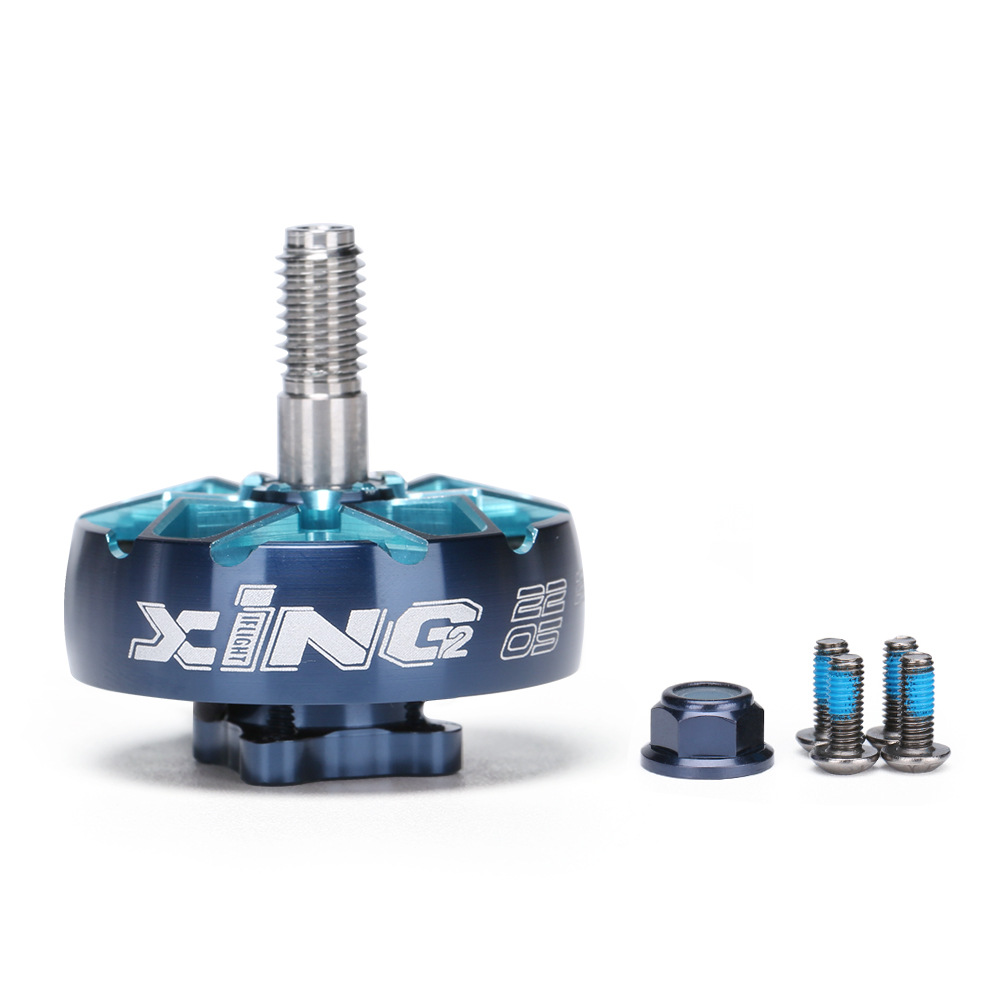

4pcs Package includes:
4x XING2 2205 Brushless Motor (Φ12/M2)
16x m2*6 screws
1pcs Package includes:
1x XING2 2205 Brushless Motor (Φ12/M2)
4x m2*6 screws
NOTE: propeller does not include.
1pcs A2212 Brushless Motor 930KV 1000/1400/1800/2200/2450/2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner Motor
XXD A2212 930KV brushless outrunner motor:
XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz
XXD A2212 1400KV brushless outrunner motor:
- Shaft diameter: 3.17mm
- Dimension : 27.8mm x 27mm
- Recommended Propeller: 2-cells 7*3.5 , 3-cells 6x3
- Weight: 48g
XXD A2212 2200KV brushless outrunner motor:
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: ?27.5 x 30mm
- Shaft Diameter: ?3.17mm
- Weight: 47g
XXD A2212 2700KV brushless outrunner motor:
Rpm/V: 2700KV
Net Weight: 50g
Weight: 60g
Motor Dimensions: 27*26mm
Battery Opernating: 2-3 Lipo
Idle current: 1.8A
Load current: 18.5A
Power (Watt): 240
ESC(A): 30A,20A
Peak.Amps :14-22 A
Dynamic reference:
1000kv with 1060 9050 propeller -- forward pull drill
1400kv with 9050 8040 8060 propellers -- pull forward 3D stunt machine/world war ii aircraft
7035 6030 propeller for 1750kv -- push back drill
6030 5030 propellers for 2200kv -- push back fighter
2700kv with 5030 propeller -- thrust back high-speed machine
It is recommended to use 2212 propeller in general 2S 7.4v
Take the following data for reference
1147 propeller for 1000kv
1060 9050 propellers for 1400kv
8060 8040 Propeller for 1750kv
7035 propeller for 2200kv
6030 propeller for 2700kv
-
- Motor x 1- Propeller adapter x 1- Screws x 4
20 pair/lot Brushless Motor High Quality Banana Plug 2.0mm 2mm Gold Bullet Connector Plated For ESC Battery
Specifications: 2mm
Compatible Models: R/C helicopter
Application: For connection
Color: Golden
Material: Alloy
Quantity: 20 pairs
     |
4-8PCS 3.2V 13.5Ah 14Ah battery pack LiFePO4 phosphate 14000mAh for 4S 12V Motorcycle Car motor batteries modification Nickel
[Product Specifications]
Model: 3.2V 13.5Ah
Type: lifepo4
Nominal Voltage: 3.2V
Nominal Capacity: 13500mAh
Internal Resistance: Less than 8mΩ
Weight: 350±5g
Size: 102*70*27mm
Maximum Continuous Discharge Current (A): 54A
Maximum Instantaneous Discharge Current (A): 6C 81A(30s)
Charge Cutoff Voltage: 3.65V±0.05V
Maximum continuous charging current: 27A
Maximum instantaneous charging current: 4C 54A (10s)
Discharge Cutoff Voltage: 2.0V
Cycle Life (80% DOD) : more than 2000 cycles
Charging temperature: 0°C~45°C
Discharge temperature: -20~60℃
Storage temperature: -20~35°C
use:
Suitable for power cars, energy storage, etc., a large number of stocks, good quality! Lithium iron phosphate battery 3.2v 13.5A motorcycle electric vehicle car motor DIY inverter is suitable for various electric tools and components.
Shipping list:
3.2V 13.5Ah Battery
Screw
Copper sheet
Under the condition of ambient temperature (25±2)℃, use constant current and then constant voltage charging. The constant current is 4.5A (A) and the constant voltage is 3.65V. During the constant voltage process, the current drops to 0.675A (A) to terminate the charging and let it stand for 1 hour.
The single-cell battery is discharged at room temperature (25°C±2°C), and the single-cell battery is discharged to a voltage of 2.0V at a current of 4.5A and discharged for 1 hour.
Warning:
1. The battery is strictly prohibited from overheating; it is strictly prohibited to modify or disassemble the battery; it may cause the battery to catch fire, leak, and explode.
2. It is strictly forbidden to put the battery cell close to the fire source, and do not place the battery in direct sunlight.
3. It is strictly forbidden to connect the positive and negative poles of the battery with metal or other conductive directly to form a path, which may cause a short circuit of the battery.
4. It is strictly prohibited to use the positive and negative poles upside down.
5. It is strictly forbidden to weld the battery directly. Overheating may cause deformation of battery components (such as gaskets).
6. During use, it is strictly forbidden to directly contact the shells between the batteries or connect them to form a path through conductors.
QX-MOTOR QC3027 3600KV DC Outrunner Brushless Motor for RC Car Ship Model .DIY RC Coreless Strong Torque
QX-MOTOR QC3027 3600KV DC Outrunner Brushless Motor DIY RC Coreless Strong Torque Toy RC Car Ship Model Motor Accessories
Brand: QX-MOTOR
Model: QC3027-3600KV and QC3027-2800KV
KV(rpm/v) 3600KV
Continuous: 80A ESC
Peak Current: 2200mAh 40C Battery
Lipo(s): 3S
Length: 69mm
Size: 48.1mm
Shaft Diameter: 4mm
Application: The overall weight of boat less than 1200g,Length less than 60cm
Features: Waterproof,high temperature
DUALSKY Outrunners Brushless Motors ECO 4120C 350KV 430KV 500KV 560KV For RC Airplane
DUALSKY Outrunners Brushless Motors ECO 4120C 350KV 430KV 500KV 560KV For RC Airplane
SPECIFICATION:
